9" Ford Iron Case 3.812" Bore Raised Pinion

PT

A carcaça alta de pinha HD HP10 3.812" foi desenhada para a alta exigência de off-road. Encaixando em pontes de 9" e utilizando engrenagens de 10" esta carcaça pode ser encontrada em muitos dos carros mais rápidos da Ultra4. O inferior da carcaça é reforçado e mais liso para ajudar a deslizar nas rochas e para suportar impactos.

EN

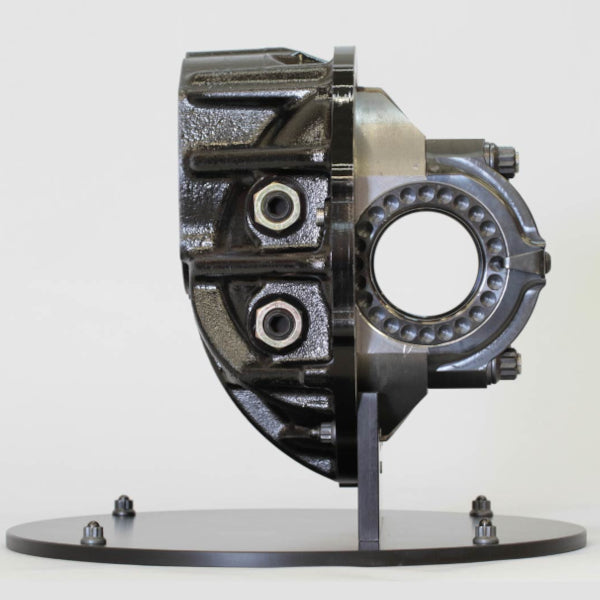

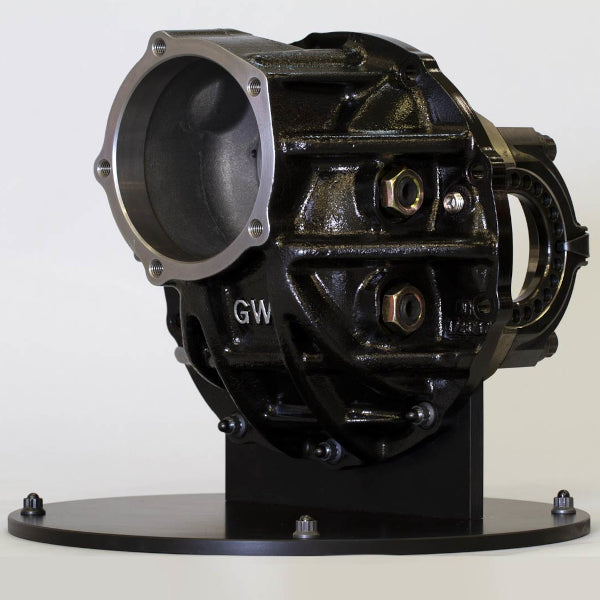

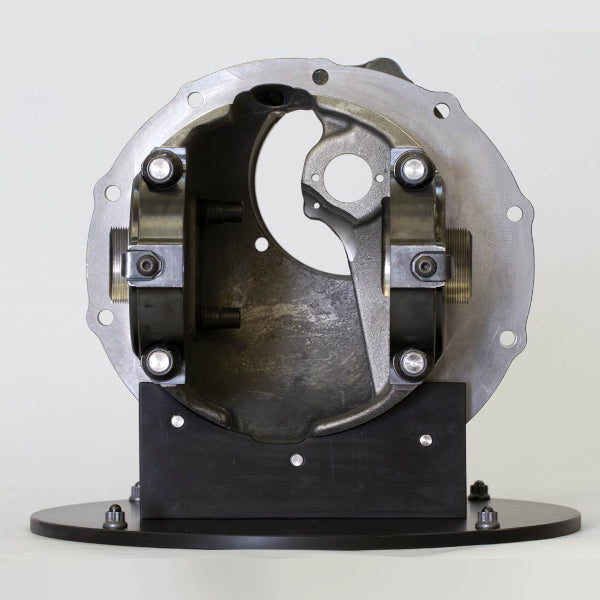

3.812″ HP10 High Pinion Case

Gearworks HD HP10 3.812″ High Pinion is designed for the highest demand off road applications needing a high pinion front or rear. Fitting into standard 9″ housings and utilizing 10″ gears this can be found in a lot of the fastest Ultra4 cars around the world. The housing has a extra thick bottom with a smoother face to help slide across rocks and to take a beating. The standard Dual load bolts keeps the ring gear from deflection.  The 5 pinion support bolts are 7/16″ to keep your pinion support tight in the heat of battle.  It uses a taller than stock 9″ tail bearing to add load capacity to this already overloaded spot and is retained by a bolt in retainer plate.  The massive main caps are Billet Chromoly with high quality ARP 9/16″ main studs retaining them.  The housing comes already clearanced and drilled/tapped for ARB air lockers. When you want the strongest high pinion housing, this is the one.
