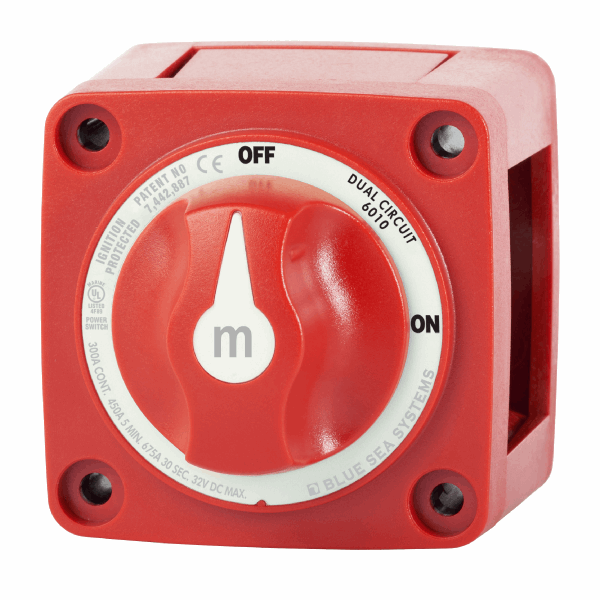

m-Series Mini Dual Circuit Battery Switch - Red

m-Series Mini Dual Circuit Battery Switch - Red

Stock reduzido: 4 restantes

€84,65 EUR
€84,65 EUR
Em promoção Esgotado
Imposto incluído.

PT

  • Alterna simultaneamente entre duas baterias
  • Proteção contra ignição - seguro para instalar em veículos a gasolina
  • Permite instalação em superfície, painel frontal ou traseiro.
  • Carcaça isoladora de clip protege os contactos traseiros.

EN

Features:
  • Simultaneously switches two isolated battery banks
  • Ignition protected—safe for installation on gasoline powered trucks and buggies
  • Case design allows surface, front panel, or rear panel mounting

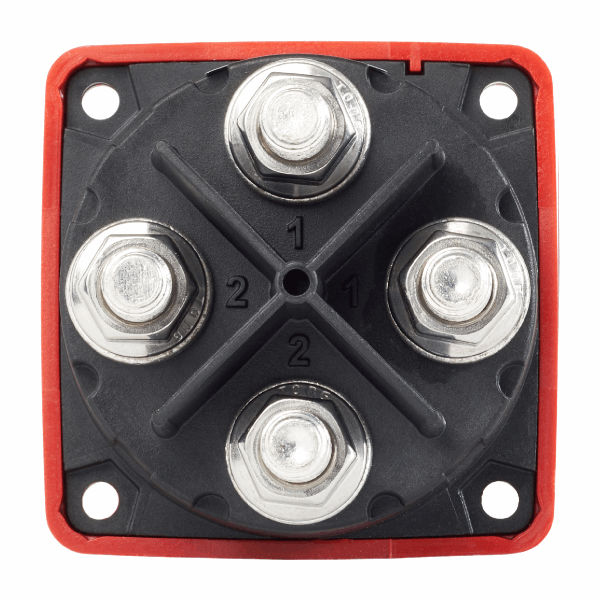

  • Isolating cover with snap-on sections protects rear contacts
Specifications:
  • Switch Type: Dual Circuit
  • Color: Red
  • Switch Positions: 2
  • Battery Combine: No
  • Alternator Field Disconnect: No
  • Maximum Voltage: 32V DC
  • Terminal Stud Torque: 120 in-lb (13.56 Nm)
  • Continuous Rating: 300A
  • Intermittent Rating: 450A (5 min)
  • Cranking Rating 10 sec: 1000A
  • Cranking Rating 1 min: 650A
  • Battery Inputs: 2
  • Cable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm)
  • Cable Size to Meet Ratings: 4/0 AWG (120mm*)
  • Mounting Holes: Accept #10 Screw
  • Terminal Stud Size: 3/8" - 16 (M10)
  • Weight: 0.80lb (0.36 kg)
